Product Description

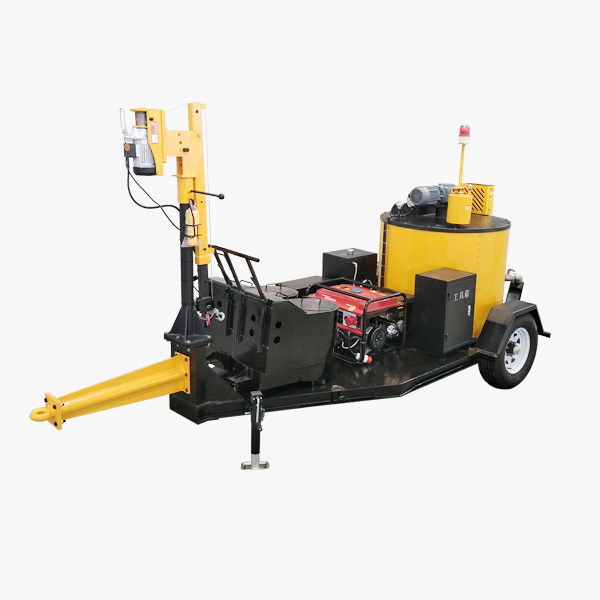

Road crack filler and sealer applied to seal pavement cracks. It is independently developed by our company. It has large capacity hopper, fast heating and good thermal insulation effect, heat conduction oil cyclic heating.
Compared with similar equipment, it is easy to operate, more stability and maneuverability, and have a long service life. It has 2 types:
Ⅰ TDQR-500: sealing with rubber hose
Ⅱ TDQ-500: sealing with handcart
Advantage

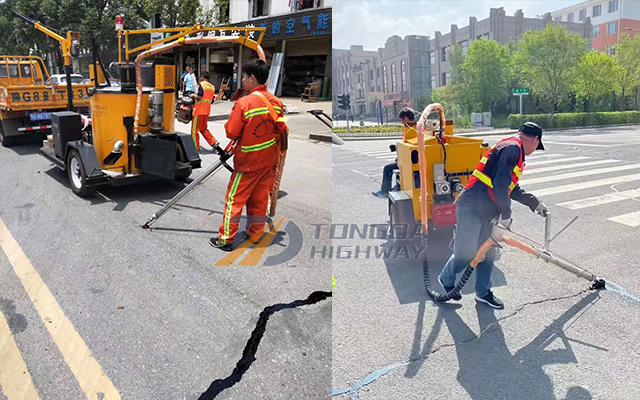

Crack seal rubber hose
Sealant is easy to flow out and collect,
Easy to pack and transfer
Application
Traction type power system can be combined with a variety of vehicles.
Glue amount is adjusted by frequency converter motor, reduce rubber pump abrasiveness.
Electrically heating, protective layer of glue host, different types of nozzles, heat transfer oil indirect multi-area heating, 360°mixing.
Technical Parameter
Product model | TDQR-500 | TDQ-500 | |
Dimensions | 4455 x1820 x2270 mm | 4455 x1820 x2270 mm | |
Hopper Volume | 500L | 500L | |
Weight | 1350kg | 1500kg | |
Power system | Traction type | Traction type | |
Plasticizing capacity | 260kg/h | 260kg/h | |
Burner brand | BECKETT | BECKETT | |
Burner calorific value | 10×104Kcal/h | 10×104Kcal/h | |
Heat transfer oil | 140L | 140L | |
Burner diesel tank capacity | 80L | 80L | |
Stirring motor power | 1.5KW | 1.5KW | |
Out of the hose heating power | 1.1KW | 1.1KW | |
Out of the hose motor power | |||
Length of hose tube | 7m | 7m | |
Generator | Max. power | 7KW | 7KW |
Fuel tank capacity | 25L | 25L | |
Engine oil consumption | 1.1L | 1.1L | |
Output voltage | 380V/220V | 380V/220V | |
Lifting machine | Power | 850W | 850W |
Max lifting weight | 200~400KG | 200~400KG | |
The biggest arm length | 1560mm | 1560mm | |
